Hydraulic Stone Impact Crusher
Brief introduction of Shanghai Tarzan hydraulic impact crusher :
Modern mining industry need high crushing ratio crushers. Shanghai Tarzan new designed PFW series hydraulic impact crushers can meet this particular requirement. As we all know, it is very common that mining equipment are frequently broken after a long-term use, so Tarzan machinery engineering team adopt advanced techniques to make our impact crushers more suitable. If you are eager to find efficient impact crusher for sale, you should take our PFW impact crusher into your consideration.
its outstanding feature is heavy-duty rotor design, unique fixing device for blow bar, quick system of replacement of wearing parts and easy maintenance/ repair. It is widely used in industries of metallurgy, mining, cement, chemical, refractory, and also widely used in highway constructions, water conservancy projects, building waste and sand processing, etc.
Shanghai Tarzan hydraulic impact crusher Features:

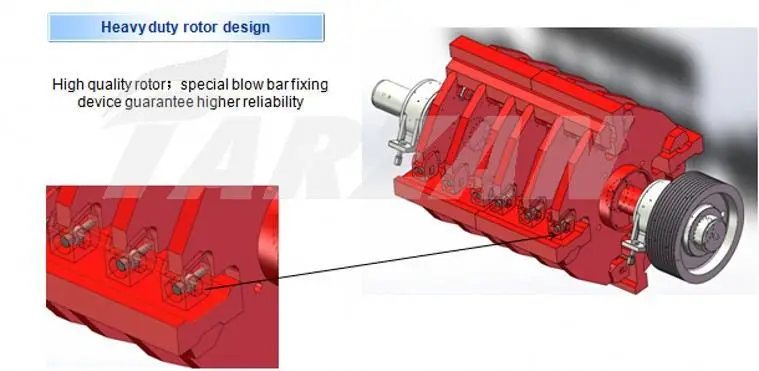

1. heavy-duty rotor design, unique fixing device for blow bar, with big processing capacity.
2. It adopts hydraulic control system to quickly adjust the size of the discharge port and discharge material size.
3. Automatic hydraulic open-top device can quickly finish the replacement of the blow bar and other wearing parts.
4. low investment, large output, easy maintenance and nice shape of finished products, etc.
5. cast steel structure, high bearing capacity
7.Low cost and save much time.
8.Easy operation and maintenance
9.Uniform and nice product shape
Shanghai Tarzan hydraulic impact crusher application :
PFW impact crusher often widely used in the secondary crushing and fine crushing. It is very suitable for open-pit crushing in quarries and it has wide materials applications. It can be used to crush feldspar, coal, quartz, calcite cement and other ore-bearing stones, etc.
Shanghai Tarzan hydraulic impact crusher working principle :
When PFW impact crusher works, materials are crushed by the high-speed impact of the blow bar after they enter the cavity, they will be fed into the impact plates for secondary crushing, then the materials will be shot back to the blow bar again for the third crushing. Repeat this movement until the materials are crushed to the required particle size and finally will discharged from discharging port. The size and shape of the finished material can be changed by adjusting the gap between the impact rack and rotor support.

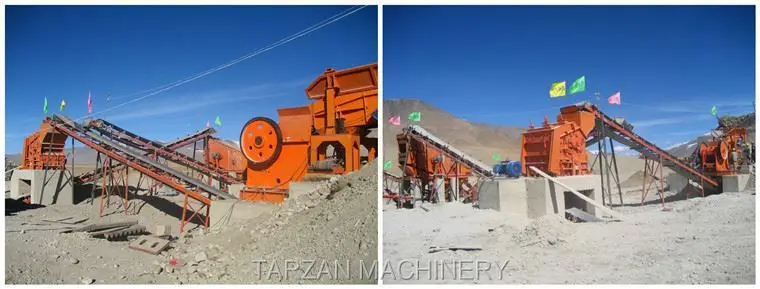

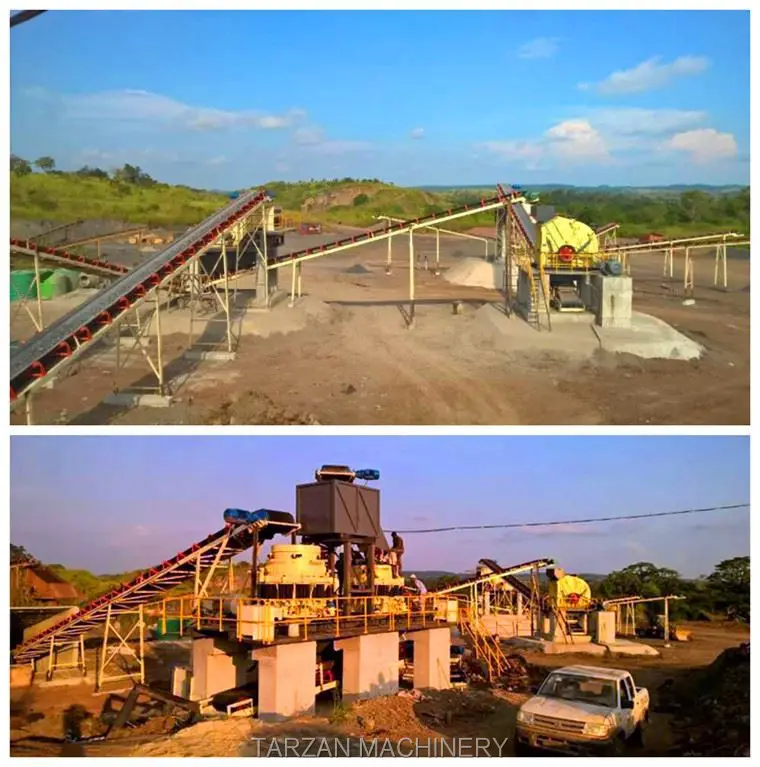

Shanghai Tarzan hydraulic impact crusher customer site :

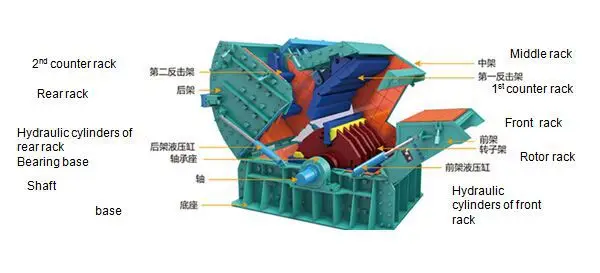

Tarzan hydraulic impact crusher structure and specification:
Modern mining industry need high crushing ratio crushers. Shanghai Tarzan new designed PFW series hydraulic impact crushers can meet this particular requirement. As we all know, it is very common that mining equipment are frequently broken after a long-term use, so Tarzan machinery engineering team adopt advanced techniques to make our impact crushers more suitable. If you are eager to find efficient impact crusher for sale, you should take our PFW impact crusher into your consideration.
its outstanding feature is heavy-duty rotor design, unique fixing device for blow bar, quick system of replacement of wearing parts and easy maintenance/ repair. It is widely used in industries of metallurgy, mining, cement, chemical, refractory, and also widely used in highway constructions, water conservancy projects, building waste and sand processing, etc.
Shanghai Tarzan hydraulic impact crusher Features:
1. heavy-duty rotor design, unique fixing device for blow bar, with big processing capacity.
3. Automatic hydraulic open-top device can quickly finish the replacement of the blow bar and other wearing parts.
4. low investment, large output, easy maintenance and nice shape of finished products, etc.
5. cast steel structure, high bearing capacity
8.Easy operation and maintenance
9.Uniform and nice product shape
Shanghai Tarzan hydraulic impact crusher application :
PFW impact crusher often widely used in the secondary crushing and fine crushing. It is very suitable for open-pit crushing in quarries and it has wide materials applications. It can be used to crush feldspar, coal, quartz, calcite cement and other ore-bearing stones, etc.
When PFW impact crusher works, materials are crushed by the high-speed impact of the blow bar after they enter the cavity, they will be fed into the impact plates for secondary crushing, then the materials will be shot back to the blow bar again for the third crushing. Repeat this movement until the materials are crushed to the required particle size and finally will discharged from discharging port. The size and shape of the finished material can be changed by adjusting the gap between the impact rack and rotor support.
| Model | Rotor Dia. | Rotor length | Max feed | Capacity | Power | Weight |
| (MM) | (MM) | (MM) | (T/H) | (KW) | (KG) | |
| PFW1313 | 1280 | 1340 | ≤200 | 160~220 | 132~200 | 19800 |
| PFW1315 | 1540 | 1500 | ≤300 | 320~380 | 280~315 | 30000 |
